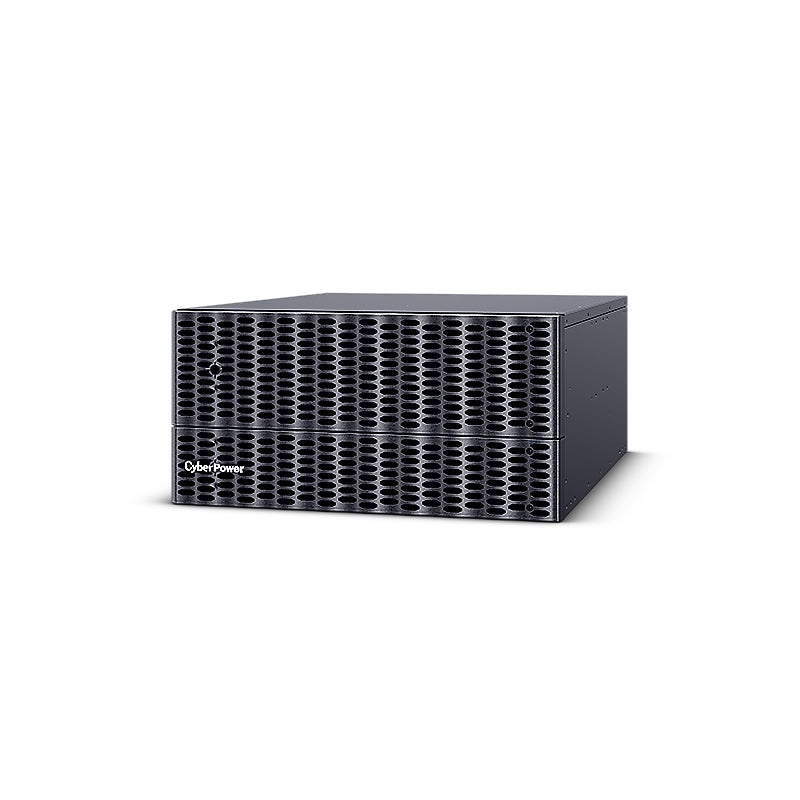

CP Battery Pack for OL3T UPS

CP Battery Pack for OL3T UPS

Specifications:

• Nominal Output Voltage ( Vdc ): 480
• Rated Output Current ( A ): 55
• Battery Type: Sealed Lead-acid
• Battery Quantity ( pcs ): 40
• Single Battery Voltage ( V ): 12
• Single Battery Capacity ( AH ): 9
• Built-in Charger: No
• User-replaceable: Yes
• Hot-swappable: Yes
• Expansion Ready: Yes
• Parallel Expansion (Max. Units): 10
• Replacement Battery Pack Quantity ( pcs ): 4
• Form Factor: Rackmount, Tower
• Enclosure Construction: Metal
• Color: Black
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions (mm): 433 x 219 x 730
• Weight (kg.): 135.8
• Installed Rack Height ( U ): 5
• Dimensions (mm.): 590 x 376 x 890
• Weight (kg.): 150
• Operating Temperature (°C): 0 ~ 40
• Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
• Operating Elevation (meters): 0-3,000
• Storage Temperature (°C): -15 ~ 45
• Storage Relative Humidity (Non-condensing) ( % ); 0 ~ 95
• Storage Elevation (meters): 0-15,000

Features:

• Certifications: CE, BSMI, IEC62040-1, IEC62040-2, CNS 14757-2, CNS 14843-1
• RoHS: Yes
