CP OL10000VA High-Power Rack Tower UPS: Reliable Performance for Your Critical Systems

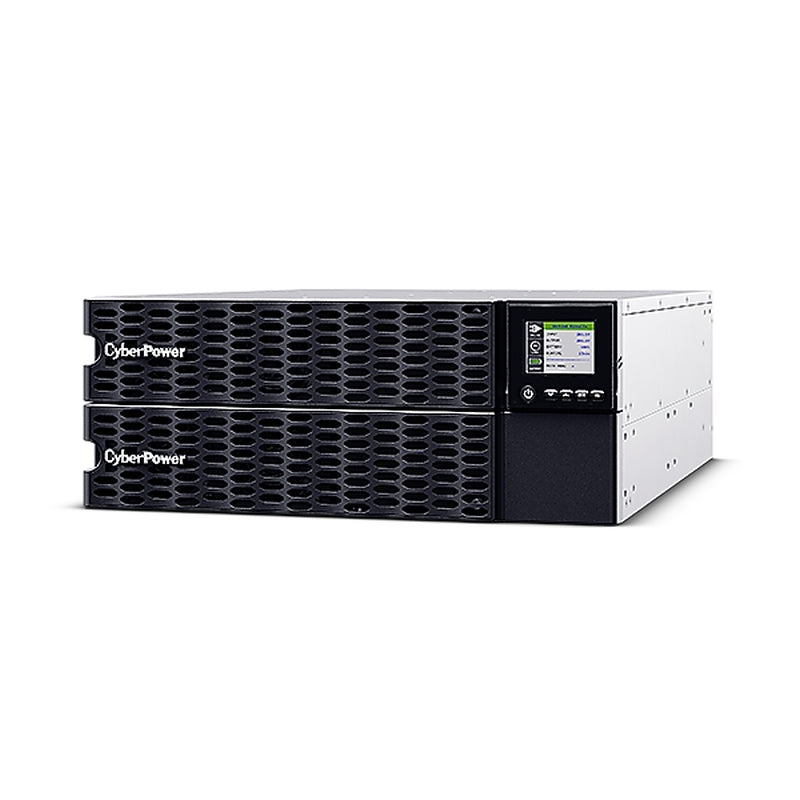

CP OL10000VA Rack Tower UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount / Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 98%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Input Voltage Range: 200 - 240v
• Input Frequency: 50 ± 10 | 60 ± 10
• Input Frequency Detection: Auto-sensing
• Rated Input Current: 54a
• Input Connector Type: Hardwire Terminal Block
• Output Capacity (VA): 10000
• Output Capacity (Watts): 10000
• On Battery Waveform: Pure Sine Wave
• Overload Protection: Internal Current Limiting / Circuit Breaker
• Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec
• Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec
• Overload Protection (Bypass Mode): Circuit Breaker
• Crest Factor: 3 : 1
• No. of Outlets: 11
• Battery Runtime at Half Load: 8.3 Mins
• Battery Runtime at Full Load: 2.4 Mins
• Typical Recharge Time: 4 Hours
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• Built-in Battery Management Module: Yes
• User-replaceable: Yes - Qualified Personnel Only
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Replacement Battery Pack (RBP): RBP0159
• Battery Voltage: 192v
• Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger)
• Surge Suppression: 2430 Joules
• Serial Port: Combo (RS232 + Dry Contact)
• SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
• Dimensions: 433 x 173 x 720mm
• Weight: 71.2kg
• Certifications: CE / EAC / RCM
• RoHS: Yes

Features:

• Online (Double Conversion) UPS Topology
• High Density Design
• High Output Power Factor
• Tiltable LCD Panel
• Surge and Spike Protection
• Controllable Outlet Groups
• Battery Management Technology
• Extended Battery Module (EBM)
• Emergency Power Off (EPO) Port
• PowerPanel Management Software
• ECO Mode
• Color LCD Panel
• Quick Charging Technology
• Automatically rotatable LCD
• Critical/Non-critical Load Outlets
• Generator Compatible
• Hot-swappable Batteries
• Smart Battery Management
• SNMP/HTTP Remote Management Capability
