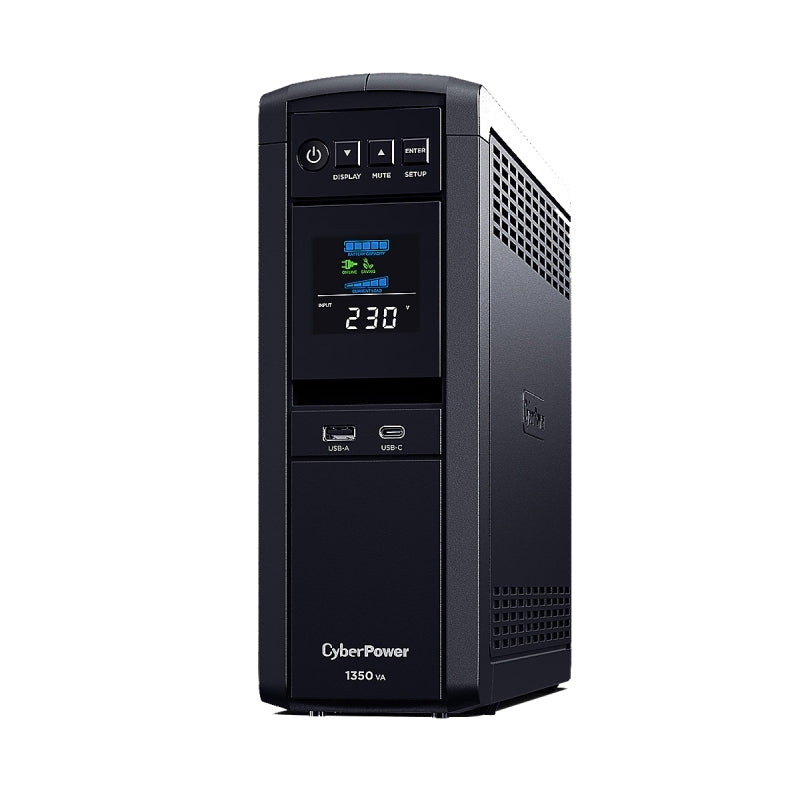

CyberPower 1350VA Pure Sine Wave UPS - Advanced Protection for High-End Systems

CyberPowerPFC UPS with Pure Sine Wave output safeguards mid to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS Technology.

Specifications:

• Form Factor: Tower
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Active PFC Compatibility: Yes
• Nominal Input Voltage ( Vac ): 220, 230, 240
• Input Voltage Range ( Vac ): 169 - 271
• Input Frequency ( Hz ): 50 ± 3, 60 ± 3
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 10
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: Schuko x
• Power Cord Length (m.): 1.83
• Capacity (VA): 1350
• Capacity (Watts): 810
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 230 ± 5 % (Under a test load of less than 60%. When the load is greater than 60%, the output voltage range may be greater than 5%.)
• On Battery Frequency ( Hz ): 50 ± 1%, 60 ± 1%
• Automatic Voltage Regulation (AVR): Single Boost
• Overload Protection: Internal Current Limiting
• Outlet(s): 6
• Outlet Type: Schuko x 6
• Outlet(s) - Battery & Surge Protected: 6
• Typical Transfer Time ( ms ): 8 (Max 12ms at normal sensitivity)
• USB Charging Port(s): USB-A x 1, USB-C x 1
• USB Charging Total Output ( Watts ): 30
• USB-A Charging Output: 5 V/ 2.4 A Max
• USB-C Charging Output: 5 V/ 2.5 A Max, 9 V/ 2 A Max, 15 V/ 2 A Max
• Runtime at Half Load ( min ): 9.6
• Runtime at Full Load ( min ): 2.1
• Typical Recharge Time ( Hours ): 8 (Recover to 90% after full load discharge)
• User-replaceable: Yes
• Battery Type: Sealed Lead-acid
• Replacement Battery Pack (RBP): RBP0146
• Replacement Battery Pack (RBP) Quantity ( pcs ): 1
• Surge Suppression ( Joules ): 405
• Network Protection RJ45: 1-in, 1-out
• LCD Panel: Yes
• LCD Types: Color LCD
• Tiltable LCD Panel: 22
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
• LCD Setting & Control: Alarm Setting, Input & Output, Battery Setting, Event & Log
• LED Indicators: Power On
• HID-Compliant USB Port(s): 1
• Serial Port: Dry Contact
• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
• Management Cable ( pcs ): USB Cable x1
• Ethernet Data Transmission Speed: Up to 1Gbps
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Dimensions: 100 x 280 x 355mm
• Weight: 10kg
• Operating Temperature: 0 - 40C
• Operating Relative Humidity (Non-condensing) ( % ): 0 - 95
• Operating Elevation: 0-3,000m
• Storage Temperature: -15 - 45
• Storage Relative Humidity (Non-condensing) ( % ): 0 - 95
• Storage Elevation: 0-15,000m
• Online Thermal Dissipation ( BTU/hr ): 24
• Certifications: CE, RoHS
• Warranty: 2-year

Features:

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• LED Status Indicator
• PowerPanel Management Software
• USB Charging Port(s)
• Tower Form Factor
• Energy Saving Technology
• Pure Sine Wave Output
• Color LCD Panel
• SNMP/HTTP Remote Management Capability (Optional)
• Surge and Spike Protection
• High-speed Ethernet Data Transmission
