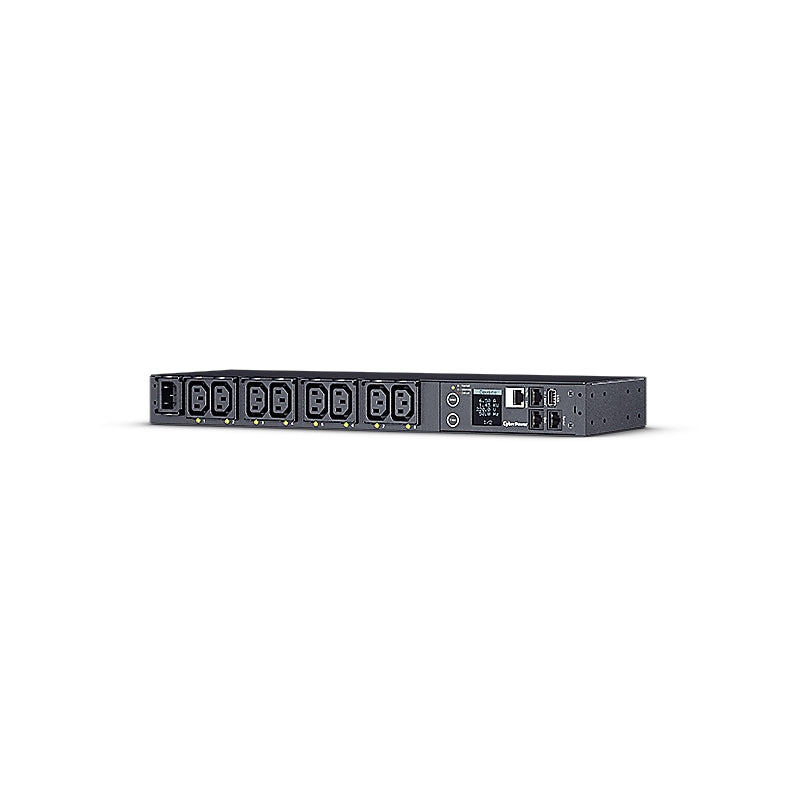

CyberPower 12Amp Smart Switched ePDU with SNMP Connectivity and 8 IEC Outputs

CyberPower Systems Switched ePDU 1RU horizontal 12Amp input - SNMP Network Connection - 8x IEC-320 C13 out -IEC-320 C14 in - 2 Yrs Adv. Replacement WTY

Specifications:

• Nominal Input Voltage ( Vac ): 100 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 12 (UL) | 10 (CE)
• Input Connector Type: IEC C14 x 1
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Idle Power Consumption ( W ): < 5
• Outlet(s) - Total: 8
• Outlet Type: IEC C13 x 8
• Remote Individual Outlet Control: Yes
• LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
• Hot-swappable LCD Module: Yes
• Auto LCD Orientation: Yes
• LCD Setting & Control: Outlet Control, LCD Settings, Reset / Reboot
• LED Indicators: PDU Status, Tx/Rx, Link, Outlet
• Outlet Metering Capability: ± 1%
• A-type USB Port: Yes
• Connectivity Port: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/ Daisy Chain (In)), RJ45 (for Daisy Chain (Out))
• Environmental Sensor Supported: Yes
• User-upgradeable Firmware: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)
• Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
• Authentication: RADIUS, LDAP, LDAPS, Windows AD
• Installed Rack Height (U): 1
• Form Factor: 1U Vertical Rackmount, 1U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 2 Set (L-short | L-long)
• Dimensions: 433 x 44 x 112mm
• Weight: 2.1kg
• Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A
• RoHS: Yes

Features:

• Real-time Local/Remote Monitoring and Switching
• Work under High Temperature
• ±1% Measurement Accuracy
• Digital Real-time Load Display
• Hot-swappable LCD Design
• LED Status Indicator
• Supports ENVIROSENSOR
• PowerPanel Management Software
• Cord Retention Tray
• Controllable Receptacles with Power Sequencing
• Ultra Low Power Consumption
• Industrial-grade Metal Housing
• User Configurable Color LCD
• Rotatable LCD for Proper Display Orientation
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking
