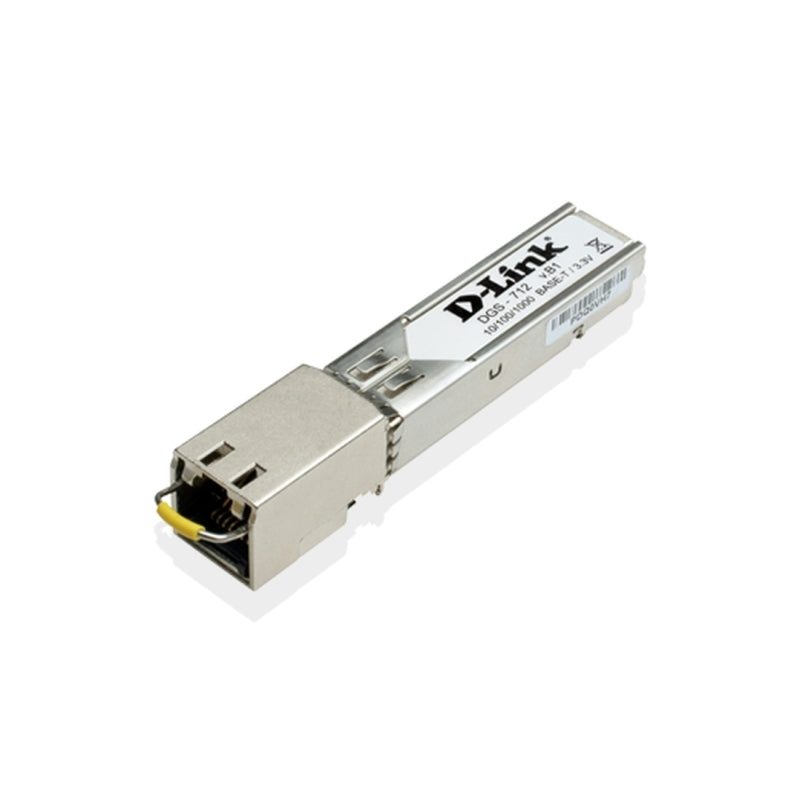

D-LINK DGS-712 Transceiver

1000Base-TX RJ45 SFP Transceiver - 100m

Specifications:

• Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Transceiver Type: SFP (Small Form Pluggable)
• Connector: RJ-45
• Auto MDI/MDIX: Automatic crossover detection enabled, External crossover cable not required
• Data Rate: 1,000 Mbps (IEEE 802.3 compatible), 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only
• Cable Type: Cat. 5 twisted-pair cable
• Maximum Cable Distance Coverage: 100 meters
• Supply Current: 350mA (typical), 400mA (maximum), 1.3W max power over full range of voltage and temperature *
• Input Voltage: 3.1V (minimum), 3.3V (typical), 3.5V (maximum), Referenced to GND
• Maximum Voltage: 4V
• Surge Current: 30mA, Hot-plug above steady state current *
• Operating Temperature: 0 to 85 C
• Storage Temperature: -40 to 85 C

Features

• Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Extended case temperature range
• Fully metallic enclosure for low EMI
• Low power dissipation (typical 1.2 watts)
• RJ-45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• 10/100/1000 BASE-T operation in host systems with
• SGMII interface
• Gigabit Ethernet over Cat. 5 cable
• +3.3V electrical power interface
