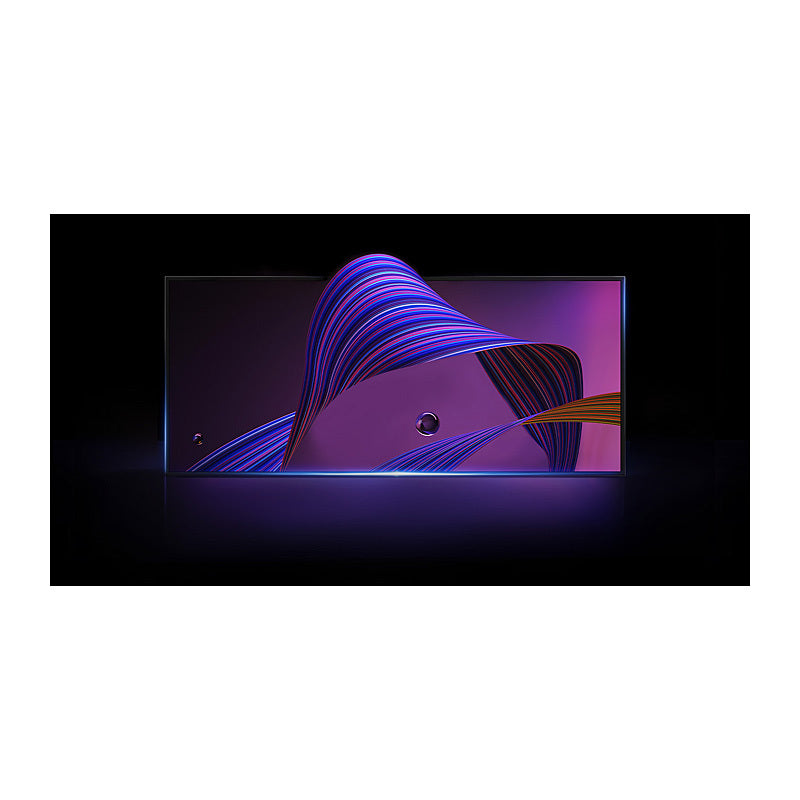

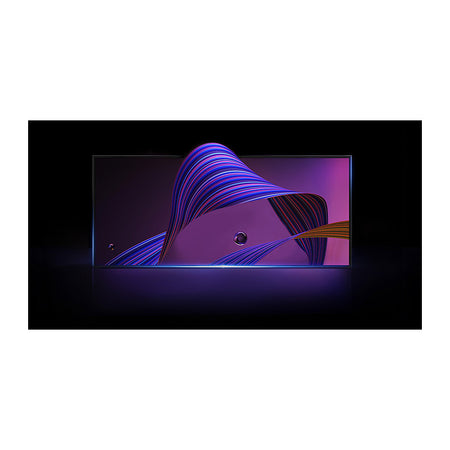

MAXHUB 92'' Non Touch Panel

92''5K Display, 21:9, support portrait mode, Android 13, 8G+64G, 2x20W+20W speaker system, MAXHUB OS, 600nits, VESA 800x600, PIR sensor, support OPS62/72 windows system, 24x7 operating hours

Features:

• 92'' 5K (5120x2160) Resolution display
• 21:9 Aspect Ratio
• 600 Nit
• Ultra-wide panoramic vision
• Portrait and Landscape mode
• Empowered by Microsoft Teams Rooms
• 8GB Ram, 64GB Rom
• Maxhub Meeting OS V6 System

Specifications:

Display

• Model: UW92NA
• Screen Size (Inch): 92
• Aspect Ratio: 21:9
• Panel: VA
• Backlight: DLED
• Brightness: 600 nits
• Haze: 25%
• Resolution: 5120 × 2160
• Refresh Rate: 60Hz
• Contrast Ratio: 5000:1 (typ.)
• Viewing Angle (H / V): 178° / 178°
• Display Orientation Landscape / Portrait
• Operation Hours (Hours / Day): 24 / 7
• Response Time: 6.5ms
• Life Time (50%): =50,000 hours

Built-in System

• Operating System: Android 13.0
• CPU: A76 × 4 + A55 × 4
• GPU: Mali-G610 MP4
• RAM: 8 GB
• ROM: 64 GB
• System OS: MAXHUB Meeting OS V6
• Screen share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast
• Device Management: MAXHUB Pivot
• Protocal Control: RS232 / IP control
• Special Features: Screen rotation / Auto input change / Play via URL / Wake on LAN / HDMI CEC / Compatible with control systems (Crestron, Q-SYS, and Extron)

Connectivity

• Input:
  • HDMI IN × 4 - HDMI 2.0 × 3, HDMI 2.1 × 1
  • USB 2.0 × 1
  • USB 3.0 × 4
  • USB Type-C × 1
  • DP IN × 1
  • AUDIO IN × 1
  • RS232 × 1
  • RJ45 IN × 1

• Output
  • HDMI OUT × 1
  • TOUCH 2.0 × 3
  • AUDIO OUT × 1
  • SPDIF × 1
  • RJ45 OUT × 1
• OPS Slot: Module slot × 1
• Wi-Fi: Wi-Fi 6
• Bluetooth: 5.2

 Audio:

• Sound Channel: 2.1
• Speaker Power: 2 × 20W + 20W

Power:

• Power Supply: 100-240V~50/60Hz
• Power Consumption (Energy Saving): 177 W
• Power Consumption (Typ.): 320 W
• Power Consumption(Max.): 530 W

Physical Specification:

• Bezel Width (L × R × T × B): 17.9 / 17.9 / 17.9 / 17.9 mm
                                             0.7 / 0.7 / 0.7 / 0.7 inch
• Dimension(W*H*D): 2182 × 944 × 85 mm
                                85.90 × 37.16 × 3.35 inch
• Shipping Dimension(W*H*D):  2360 × 1072 × 225 mm
                                               92.91 × 42.20 × 8.86 inch
• VESA: 800 × 600 mm
• Net Weight: 43.40 Kg
• Gross Weight: 62.60 Kg

Environmental Conditions

• Operating Temperature: 0°C~40°C
• Storage Temperature: -20°C~60°C
• Operating Humidity: 10%~90%RH
• Storage Humidity: 10%~90%RH

Certification

• Energy Star: Y
• IP Rating: IP5X

Warranty:

• Display: 3 years warranty

Accessories

• Power Cord
• HDMI Cable
• Remote Control
• Wall Mount
• Wireless Adapter

Optional Module

• OPS: OPS62A / OPS72A
• Mobile Stand: ST41B / ST23C
